Mifare door lock In Acrylic Panel With Locksoft For High Efficiency
Hotel Door System Management
SPECIFICATION
Model :Tahiti L181X
Color:Golden /Silver/Black
Measurement :310*70*23
Material:Stainless steel /moisture proof/fire retardant
Brand:Panwei
Opening way:Keycards /Mechanical key
Card support:Mifare S50 plus S70 /T5557card
Power:LR6 (AA)battery X 4pcs
Working voltage:6 DC
Static current;< 25uA
Humidity:RH(20~80)%
Working temperature:-50°C to 80°C
Gross Weight:3.0Kgs /unit
Package:10pcs/Carton at 74.0X42.0X32.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery pack
/manual/Strike(No battery included, No card)
Warranty:24Months
SUPPORTING:
* Required Panwei hotellock software system.
* PMS/SDK interface allow combine with OEM system for management .
* Stainless steel plus Chrome finished moisture proof and fire
retardant .
* ANSI/European standard mortise available .
* Free-engage handle against damage .
* T557/Mifare card, Contactless /Proximity.
* Openings 20,000 times for one new battery pack
* Low Battery Voltage warning (<4.8V).
* Deadbolt override for emergency use /individual/master cylinder.
* Door thickness require :30-58MM
* function card :Master card /Emergency card /Building card /Floor
card /Passage Card /Package card /Guest card all available
* One basically kit working system including Lock /Card /Encoder
/Handset(optional )/Energy saving switch(optional )
Our advantages
Industrial grade motherboard design
Automatic SMT Crafts Surface Waterproof "Firewall Anti-scour"
Special treatment of collision and other three defenses.
Anti interference function
Rotary indoor button, anti-lock effect.
Foam packaging
Thickening foam packaging can effectively prevent the product from
being transported.
Damage.
Easy control with one card open
This product can be set as a door card by using a card. Simple
settings are required.
One card opens easily. Free printing of LOGO from 50 pcs
Battery low voltage alarm
Energy-saving optimization, more energy-saving battery life, longer
Low power consumption, 4 section 5 alkaline batteries, available
for one year.
<4.5V can not be turned on 300 times/standby power consumption:
<15 mA
Application for new construction hotel or retrofit for replacement
1 Latest RFID technology programme with excellent stable quality
2 Low maintenance
3 Competitive price .We the genuinely source locks manufacture
factory ,without retailer or distributor
4 Quick response .whatever issue we will response asap within
24hours .
5 Fast delivery time .After QC test then package and delivery
6 Support technical update solution
7 Lifetime after-sales service
Features :
Acrylic panel with Zinc alloy frame in elegant style
High hardness, high brightness, wear resistance, no color fading
Easy to clean and maintain
Simplicity handle designed
Battery case cover
Rear knob
Panel screw
Concealed lock cover
Panwei Electronic Technology Co.,Ltd is located in Shenzhen Guangdong province of China .Our main
business: hotel door lock /fingerprint door lock/code lock and
relative accessories .In order to develop the market and achieve mutual benefit, we will
be in line with the "price, quality","integrity, service" win-win
business philosophy, dedicated to our customers. Our company stand
with the principle of "the lowest price, but the best quality",
wholeheartedly for domestic and foreign users to provide excellent
products and honest service.Not only manufacturing but keep innovating to find the properly lodging
solution products for the contemporary accommodation hospitality

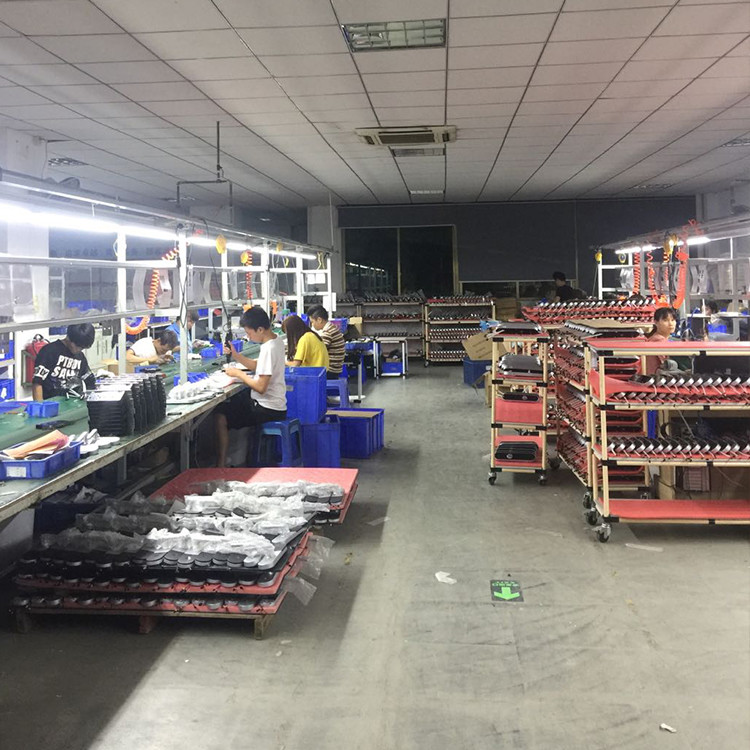

Factory Production Workshop
We have a sound quality assurance system, through all production machines are precise,procedures are clear ,from machine assembly to
products assembly inspection.Our staffs are responsible and
experienced for each product .ensure each is in the best condition
and final delivery to customers .all partners of high standards of quality inspection and
recognition. the door lock strictly abided by the strict quality
requirements, each lock has been carefully crafted, quality layer
by layer, and passed the ministry of public security and police
electronic products quality center testing, European Union CE
certification, Malaysia fire test (British standard), Saudi Arabia
SASO certification, exported to the world, quality is trustworthy.
